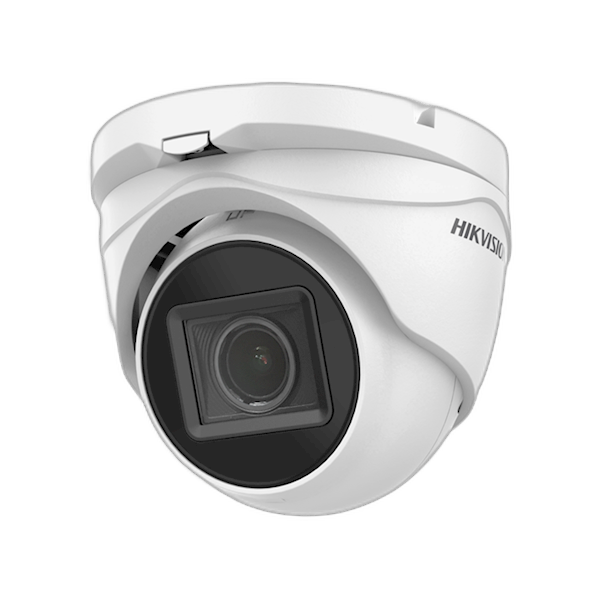

DS-2CE79H0T-IT3ZE 2.7-13.5MM, Varifocal 5MP Turbo dome, gemotoriseerde lens

• Hoge kwaliteit beeldvorming met 5 MP, 2560 × 1944 resolutie
• Gemotoriseerde varifocale lens van 2,7 mm tot 13,5 mm
• Tot 40 m IR-afstand voor heldere nachtopnamen
• Water- en stofbestendig (IP67)

Technische specificaties

Camera Image Sensor 5 MP CMOS Signal System PAL/NTSC Resolution 2560 (H) × 1944 (V) Frame Rate TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s Lens 2.7 mm to 13.5 mm motorized varifocal lens Field of View horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33° Lens Mount Φ14 Day & Night IR Cut Filter WDR (Wide Dynamic Range) Digital WDR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° Image Day/Night Mode Auto/Color/BW (Black and White) Image Mode STD/HIGH-SAT AGC Yes White Balance Auto/Manual AE (Auto Exposure) Mode DWDR,BLC,HLC,Global Noise Reduction 2D DNR Language English Function Brightness,Smart IR,Sharpness Interface Video Output 1 HD analog output General IR Range Up to 40 m Operating Conditions -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) Power Supply 12 VDC±15%/PoC.at *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply. Consumption Max 8.4 W Protection Level IP67 Material Metal Communication HIKVISION-C Dimension 123.87 mm × 110.24 mm × 134.3 mm (4.87" × 4.34" × 5.29") Weight Approx. 595 g (1.31 lb.)

Download datasheet
