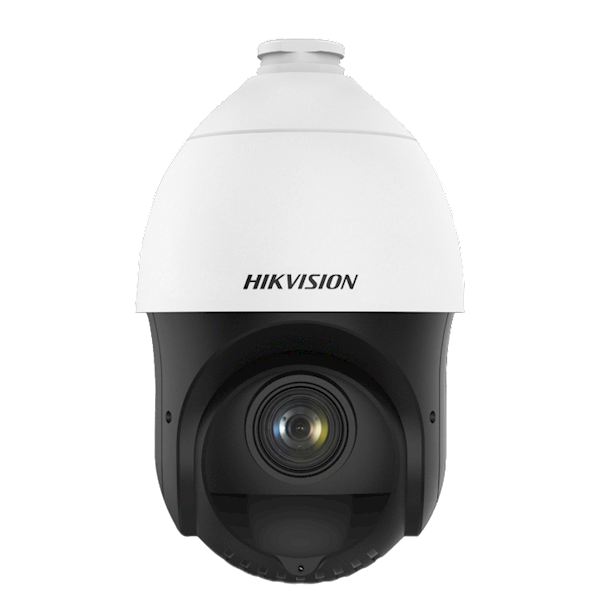

DS-2DE4225IW-DE T5, 2MP, 25x Zoom, 100m IR, WDR, Ultra Low Light, AcuSense

• Toepassing: PTZ Speeddome met AcuSense techniek.
• 1/2.8 "Progressive Scan CMOS
• Hoge beeldkwaliteit met een resolutie van 2MP
• Uitstekende prestaties bij weinig licht met powered-by-DarkFighter-technologie
• 25× optische zoom, 16× digitale zoom
• WDR, HLC, BLC, 3D DNR, Defog, Regionale blootstelling, Regionale focus
• Tot 100m IR-afstand
• Nauwkeurige classificatie en alarm van mens en voertuig op basis van een diepgaand leer-algoritme
• Gezichtsopname: maximaal 5 gezichten tegelijkertijd vastgelegd

Technische specificaties

Camera Module Image Sensor1/2.8" progressive scan CMOS Min. Illumination0 Lux with IR,color: 0.005Lux @ (F1.6,AGC ON); B/W: 0.001Lux @ (F1.6,AGC ON) Shutter Speed1/1s-1/30000s Slow Shutteryes Focus;semi-auto;manual;auto Day & NightICR Day/Night Switchday, night, auto, scheduled-switch BLCyes WDR120 dB WDR HLCyes 3D DNRyes Defogyes EISyes Regional Exposureyes Regional Focusyes Image Settingsbrightness;contrast;sharpness;saturation White Balanceauto;ATW;sodium lamp;indoor;fluorescent lamp;outdoor;MWB;Locked WB;Locked WB Digital Zoom16x Optical Zoom25x Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable SNR>52dB Lens Focal Length4.8 mm to 120 mm, 25× Optical Zoom Speedapprox. 3.6 s FOV Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele) ApertureF1.6 PTZ Movement Range (Pan)360° Movement Range (Tilt)-15° to 90°(auto flip) Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s Proportional Zoomyes Presets300 Patrol Scan8 patrols, up to 32 presets for each patrol Pattern Scan4 pattern scans Power-Off Memoryyes Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan 3D Positioningyes PTZ Status Displayyes Preset Freezingyes Scheduled Taskpreset;pattern scan;patrol scan;auto scan;panorama scan;random scan;tilt scan;frame scan;dome reboot;dome adjust;aux output Video Max. Resolution1920 × 1080 Stream Typemain stream;sub-stream;third stream Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video CompressionH.265;H.264;MJPEG Video Bit Rate32kbps to 16384kbps H.264 Type;;;baseline profile;main profile;high profile H.265 Type;main profile H.264+yes H.265+yes SVCyes ROIdynamic face tracking;;main stream, sub-stream and third stream respectively support eight fixed areas;fixed region Audio Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz Environment Noise Filteringyes Smart Features Face Captureyes Basic Eventaudio exception;motion detection;video tampering alarm;exception Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection Smart RecordANR;Dual-VCA Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP Network Network StorageNAS (NFS, SMB/ CIFS);ANR ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour APIISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP;Hik-Connect Simultaneous Live View20 User/Host32 Smooth Streamingyes Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter ClientiVMS-4200;Hik-Connect Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+ Interface Communication Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at);RJ45, self-adaptive 10M/100M Ethernet port On-Board Storagesupport microSD/microSDHC/microSDXC cards;up to 256 GB Alarm Input1 alarm input Alarm Output1 alarm output Audio Input;1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% Audio Output1 audio output, line level, impedance: 600 Ω Supplement Light IR Distance100 m General Power12 VDC,PoE(802.3at) Power Consumption And CurrentMax. 24 W, including max. 9 W for supplement light Operating Conditionshumidity lower than 90%RH ;temperature: -30? to 65? (-22°F to 149°F) Resetyes MaterialADC 12, PC, PC+10% GF DimensionsΦ 164.5 mm × 290 mm (Φ 6.48" × 11.42") WeightApprox. 2 kg (4.41 lb) Approval Protection;IP66;4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Download datasheet
