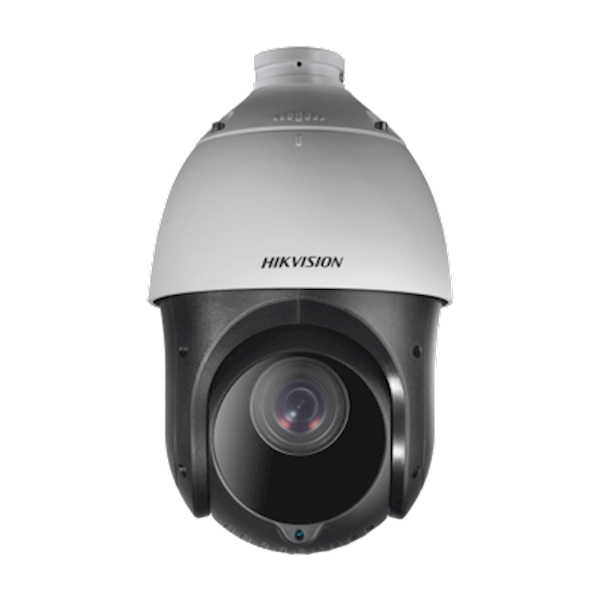

DS-2DE4425IW-DE(T5), 4-inch 4 MP 25X Powered by DarkFighter

• Richt zich op classificatie van menselijke en voertuigdoelen op basis van deep learning
• Ondersteuning voor het vastleggen van gezichten. Tot 5 gezichten tegelijkertijd vastgelegd
• 1/2,8" CMOS met progressieve scan
• Beeldkwaliteit van hoge kwaliteit met een resolutie van 4 MP
• Uitstekende prestaties bij weinig licht met powered-by-DarkFighter-technologie
• 25× optische zoom en 16× digitale zoom bieden close-ups van uitgestrekte gebieden
• Uitgebreid nachtzicht met een IR-afstand tot 100 m
• Ondersteuning van H.265+/H.265-videocompressie

Technische specificaties

Camera Image Sensor1/2.8" progressive scan CMOS Max. Resolution2560 × 1440 Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter Speed1 s to 1/30,000 s Slow Shutteryes Day & NightIR cut filter Zoom25x optical, 16x digital Lens FocusAuto, semi-auto, manual ApertureMax. F1.6 Zoom SpeedApprox. 3.6 s Focal Length4.8 mm to 120 mm FOV Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele) Illuminator Supplement Light TypeIR Supplement Light RangeIR Distance: up to 100 m PTZ Proportional Pan Yes Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output Movement Range (Pan) 360° Movement Range (Tilt) -15° to 90° (auto flip) Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s Presets 300 Patrol Scan8 patrols, up to 32 presets for each patrol Pattern Scan4 pattern scans Power-Off Memory yes 3D Positioningyes PTZ Status Display yes Preset Freezing yes Video Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG Region Of Interest (ROI)8 fixed regions for each stream Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video Bit Rate 32 kbps to 16384 kbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain profile Scalable Video Coding (SVC)H.264 and H.265 encoding Audio Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering Yes Network Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Simultaneous Live ViewUp to 20 channels User/HostUp to 32 users, 3 user levels: administrator, operator, and user SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) ClientiVMS-4200, HikCentral Pro, Hik-Connect Web BrowserChrome 57.0+, Firefox 52.0+, Safari 11+, IE11 Image Image Parameters SwitchYes Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Day/Night SwitchDay, Night, Auto, Schedule Wide Dynamic Range (WDR)120 dB SNR> 52 dB Defog Digital defog Image StabilizationEIS Image Enhancement BLC, HLC, 3D DNR Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable Regional Focus Yes Regional Exposure Yes Interface Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Alarm1 input, 1 output Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10% 1 output (line out), line level, output impedance: 600 Ω Reset Yes Event Basic EventMotion detection, video tampering alarm, exception, alarm input and output Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) Deep Learning Function Face Capture Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) General Power 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at) Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) DemistYes MaterialADC12 DimensionsØ 164.5 mm × 290 mm (Ø 6.48" × 11.42") WeightApprox. 2 kg (4.41 lb.) Approval EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
