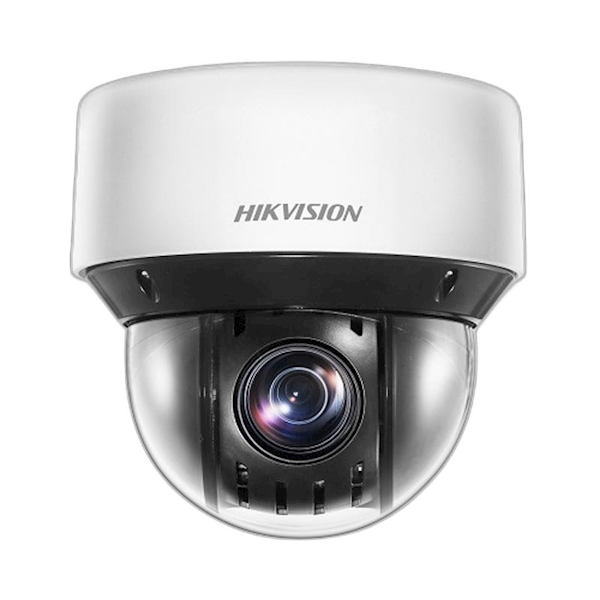

DS-2DE4A225IWG-E, Hikvision, 4-inch, 2MP, 25X zoom, Speed Dome

• Beeldvorming van hoge kwaliteit met een resolutie van 2 MP, tot 60 fps
• Uitstekende prestaties bij weinig licht dankzij Powered-by-DarkFighter-technologie
• Helder beeld bij sterk tegenlicht dankzij 120 dB WDR-technologie
• Dankzij de pan- en tilt-functie kan de camera interessante zones bewaken
• Dankzij de 25× optische zoom kunnen onderwerpen in uitgestrekte gebieden van dichterbij worden bekeken
• Tot 50 m IR-bereik zorgt voor veiligheid 's nachts
• Water- en stofbestendig (IP66)
• Richt zich op de classificatie van menselijke en voertuigdoelen op basis van deep learning

Technische specificaties

Camera Image Sensor1/2.8" Progressive Scan CMOS Max. Resolution1920 × 1080 Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter Speed1/1 s to 1/30,000 s Day & NightIR cut filter Zoom25 × optical, 16 × digital Slow ShutterYes Lens Focal Length4.8 to 120 mm FOVHorizontal FOV 54.9° to 2.7°, vertical FOV 31.5° to 1.5°, diagonal FOV 62.3° to 3.1° FocusAuto, semi-auto, manual ApertureMax. F1.6 Zoom SpeedApprox. 3.4 s Illuminator Supplement Light TypeIR Supplement Light RangeIR Distance: up to 50 m Smart Supplement LightYes IR Wavelength850 nm PTZ Movement Range (Pan)0° to 360° Movement Range (Tilt)-5° to 90° Pan SpeedPan speed: configurable from 0.1° to 300°/s; preset speed: 350°/s Tilt SpeedTilt speed: configurable from 0.1° to 160°/s, preset speed 200°/s Proportional Pan Yes Presets 300 Preset Freezing Yes Patrol Scan8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans, record time over 10 minutes for each scan Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan 3D Positioning Yes PTZ Status Display Yes Scheduled Task preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust Power-Off Memory Yes Video Main Stream 50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under certain settings. Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain profile Scalable Video Coding (SVC)H.264 and H.265 encoding Region Of Interest (ROI)8 fixed regions for each stream Audio Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/128 to 1024 Kbps (PCM)/16 to 64 Kbps (AAC-LC) Audio Sampling RateAAC-LC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz Environment Noise FilteringYes Network ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour,WebSocket,WebSockets Simultaneous Live ViewUp to 20 channels APIOpen Network Video Interface (Version 19.12), Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/HostUp to 32 users; 3 user levels: administrator, operator, and user SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) ClientiVMS-4200, HikCentral Pro, Hik-Connect Web BrowserIE 10 to 11, Chrome 57+, Firefox 52+, Safari 11+ Image Image Parameters SwitchYes Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Day/Night SwitchDay, Night, Auto, Schedule Wide Dynamic Range (WDR)120 dB SNR>52 dB DefogDigital Defog Image EnhancementBLC, HLC, 3D DNR Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable Regional FocusYes Regional ExposureYes Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Audio1 input (line in), max. input amplitude: 1Vrms, input impedance: 4.7 KΩ ± 5%; 1 output (line out), line level, output impedance:100Ω±5% Alarm2 inputs, 2 outputs ResetYes Event Basic EventMotion detection, video tampering alarm, exception, alarm input and output Smart Eventline crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) Smart TrackingManual tracking,auto-tracking Deep Learning Function Face Capture Detects up to 5 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture General Power12 VDC, Max. 24 W; PoE (802.3at) DimensionØ 169 mm × 161 mm (Ø 6.65" × 6.34") WeightApprox. 2.45 kg (5.40 lb.) Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) General FunctionMirror, password protection Approval ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
