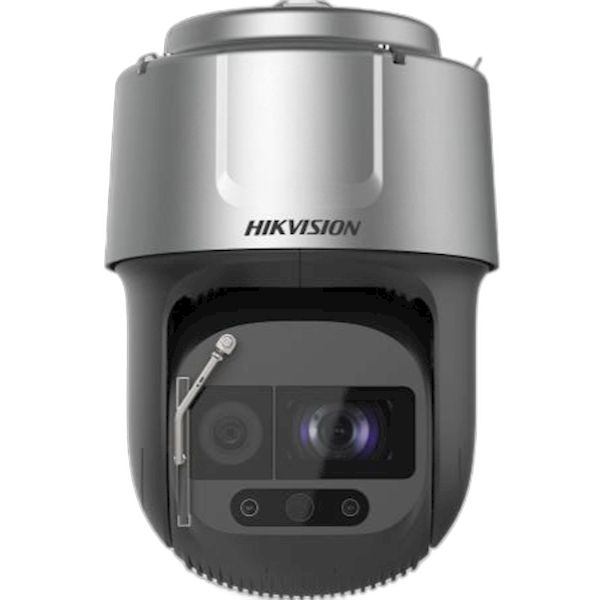

DS-2DF9C848LXG-LW , 48X DarkFighter Laser PTZ

Technische specificaties

Camera Image Sensor1/1.2" progressive scan CMOS Max. Resolution3840×2160 Min. IlluminationColor: 0.0005 Lux @ (F1.6, AGC ON),B/W: 0.0001 Lux @ (F1.6, AGC ON),0 Lux with light Shutter Speed1/1 to 1/30,000s Zoom48x optical, 16x digital Slow ShutterYes Lens Focal Length6.6 mm to 316.8 mm FOV Horizontal field of view: 61.0° to 2.1°(wide-tele) Vertical field of view: 35.9° to 1.2°(wide-tele) Diagonal field of view: 68.5° to 2.4° (wide-tele) FocusAuto, semi-auto, manual, rapid focus ApertureMax. F1.6 Zoom SpeedApprox. 7.4s Illuminator Supplement Light RangeLaser distance: up to 800 m Smart Supplement LightYes PTZ Movement Range (Pan)360° Movement Range (Tilt)-25° to 90° (auto flip) Pan SpeedPan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s Proportional PanYes Presets300 Preset FreezingYes Patrol Scan8 patrols, up to 32 presets for each patrol Pattern Scan4 pattern scans, record time over 10 minutes for each scan Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan 3D PositioningYes PTZ Status DisplayYes Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output Power-Off MemoryYes Video Main Stream 50Hz: 25fps (3840 × 2160,2560 × 1440,1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 24fps (3840 × 2160,2560 × 1440,1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 24fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 24fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG Video Bit Rate32 Kbps to 16384 Kbps H.264 TypeBaseline profile, main profile, high profile H.265 TypeMain profile Scalable Video Coding (SVC)H.264 and H.265 encoding Region Of Interest (ROI)8 fixed regions for each stream Audio Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2) Network ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour Simultaneous Live ViewUp to 20 channels APIONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK User/HostUp to 32 users, 3 user levels: administrator, operator, and user SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+ Image Image Parameters SwitchYes Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Day/Night SwitchDay, night, auto, scheduled-switch Wide Dynamic Range (WDR)140 dB WDR SNR≥ 55 dB DefogOptical defog Image StabilizationOIS Image EnhancementBLC, HLC, 3D DNR Privacy MaskUp to 24 masks, polygon region, mosaic mask, mask color configurable Regional FocusYes Regional ExposureYes Interface Video Output1.0V[p-p]/75Ω, PAL, NTSC, BNC connector Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω Alarm7 inputs, 2 output RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Event Basic EventMotion detection, video tampering alarm, alarm input and output, exception Smart EventObject removal detection, unattended baggage detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection LinkagePreset, patrol scan, pattern scan, memory card video recording, alarm output, send email, notify surveillance center, upload to FTP, smart tracking, NAS video recording Smart TrackingManual tracking, auto-tracking Deep Learning Function Face CaptureDetects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture Road TrafficSupports vehicle detection (license plate number,vehicle model, and vehicle color recognition) General Power36 VDC, max. 90 W, including max. 18 W for IR DimensionΦ 293 mm × 422 mm (Φ 11.5" × 16.6") WeightApprox. 13 kg (28.7 lb) MaterialADC12 Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% General FunctionMirror, password protection, watermark, IP address filter Vandal-Proof AlarmYes WiperYes. Rain-sensing auto control Language32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) Approval EMCLightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5 ProtectionIP67
