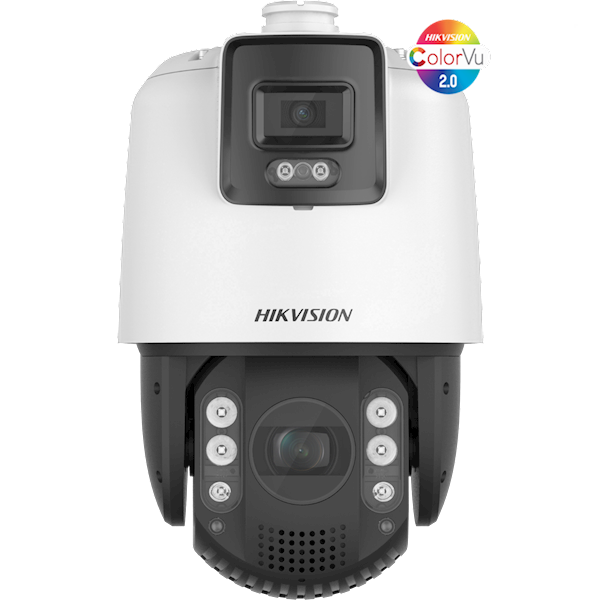

DS-2SE7C432MW-AEB 14F1 P3, TandemVu PTZ 32x Zoom

• Legt tegelijkertijd een groot gebied en geweldige details vast
• Hoge beeldkwaliteit met een resolutie van 4 MP
• Uitstekende prestaties bij weinig licht met powered-by-DarkFighter-technologie
• Beveiligt een groot gebied met 32× optische zoom en 16× digitale zoom
• Ondersteunt WDR, HLC, BLC, 3D DNR, defog, regionale belichting, regionale focus, snelle focus
• Uitgebreid nachtzicht met een IR-afstand tot 200 m
• Ondersteunt 24 VAC en Hi-PoE
• Actief stroboscooplicht en audioalarm om indringers te waarschuwen

Technische specificaties

Camera Image Sensor[Bullet channel]: 1/1.8" Progressive Scan CMOS; [PTZ channel]: 1/1.8" progressive scan CMOS Min. Illumination [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR Shutter Speed1 s to 1/30,000 s Slow Shutteryes Focussemi-auto;manual;auto Day & NightICR Zoom[PTZ channel] 32 × optical, 16 × digital Day/Night Switchday, night, auto, scheduled-switch BLCyes WDR120 dB WDR HLCyes 3D DNRyes Defogyes EISyes Regional Exposureyes Regional Focusyes Image Settingssaturation;brightness;contrast;sharpness White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB SNR>52dB General Functionmirror, password protection, watermark, IP address filter Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 Lens Focal Length[Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical Zoom Speed[PTZ channel]: approx. 5.6 s FOV [Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7° [PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele) Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.5 Illuminator Supplement Light Type[Bullet channel] white light, [PTZ channel] IR Supplement Light Range[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m Smart Supplement LightYes PTZ Movement Range (Pan)360° Movement Range (Tilt)-15° to 90° (auto flip) Pan Speed pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s Tilt Speed tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s Proportional Zoom yes Presets 300 Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans Power-Off Memory yes Park Action preset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan 3D Positioning yes PTZ Status Display yes Preset Freezingyes Scheduled Task preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output Exception Detection IP address conflict, HDD full, illegal login, HDD error, network disconnected Video Stream Typemain stream;sub-stream;third stream Main Stream [Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream [Bullet channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream [Bullet channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video CompressionH.265;H.264;MJPEG Video Bit Rate32 kbps to 16384 kbps H.264 Typebaseline profile;main profile;high profile H.265 Typemain profile H.264+yes H.265+yes SVCyes ROImain stream, sub-stream and third stream respectively support eight fixed areas Audio Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM Audio Bit Rate32 to 192 Kbps (MP2L2) Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz Environment Noise Filteringyes Smart Features Smart RecordANR;Dual-VCA Warning And Alertwhite light and audible warning Network Network StorageNAS (NFS,SMB/ CIFS), ANR ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP Simultaneous Live View20 User/Host32 Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter ClientiVMS-4200;Hik-Connect Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+ Image Image Parameters SwitchYes Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable Interface Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB Alarm Input2 alarm inputs Alarm Output1 alarm output Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% Audio Output1 audio output, line level, impedance: 600 Ω Event Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection Alarm Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) Smart Tracking[PTZ channel] yes Smart LinkageManual tracking, auto tracking, tracking takeover, track in turn Deep Learning Function Face Capture[Bullet channel] no,[PTZ channel] yes General Power24 VAC, Hi-PoE Power Consumption And Current Max. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light Operating Conditions-30? to 65? (-22°F to 149°F) ;humidity lower than 90%RH Reset yes Demist Demist by heating the glass Material ADC12 Dimensions Ø 220 mm × 382.1 mm (Ø 8.66" × 15.04") Approx. 6 kg (13.23 lb.) Approval Protection IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection
