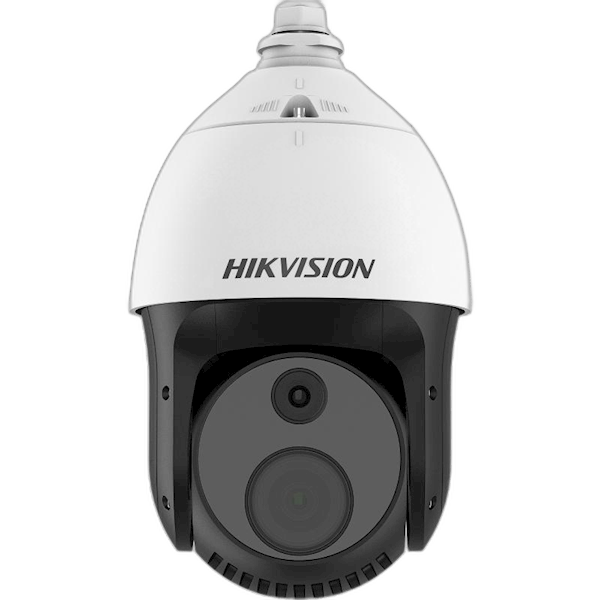

DS-2TD4228T-10/S2 Hikvision, Thermografische bi-spectrum speed dome 10mm

• Perimeterbeveiligingsfunctie: lijnoverschrijding, inbraak, binnenkomst en vertrek van een gebied
• Alarm bij temperatuurafwijking voor brandpreventie, -20 °C tot 550 °C (-4 °F tot 1022 °F), max. (± 2 °C, ± 2%)
• Branddetectiealgoritme
• 256 × 192 (de resolutie van het uitvoerbeeld is 1280 × 720) resolutie 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1,0)
• Beeldverwerkingstechnologie: Liner, histogram en zelf-adaptieve thermische AGC-modus, DDE, 3D DNR
• Hoogwaardige detector met 10 jaar garantie
• Slimme tracking: Panoramatracking, gebeurtenistracking en patrouilletracking met meerdere scènes
• Slimme trackingkoppeling: thermische weergave en optische weergave
• Rookdetectie voor brandpreventie

Technische specificaties

Thermal ModuleImage Sensor Vanadium Oxide Uncooled Focal Plane ArraysResolution 256 × 192 (the resolution of output image is 1280 × 720)Pixel Interval 12 μmResponse Waveband 8 μm to 14 μmNETD Less than 35 mK (@25 °C,F#=1.0)Focal Length 10 mmFocus Mode AthermalizedIFOV 1.2 mradAperture F1.0Field of View 18.1°×13.6° (H × V)Min. Focusing Distance 1.5mDigital Zoom ×2, ×4, ×8Optical ModuleImage Sensor 1/2.8" Progressive Scan CMOSResolution 2688 × 1520, 4 MPMin. Illumination Color: 0.05 Lux @(F1.2,AGC ON), B/W: 0.01 Lux @(F1.2,AGC ON)Field of View 58.8° × 34.4° (H × V) to 2.18° × 1.2° (H × V)Focal Length 4.8-153 mm, 32xAperture (Range) F1.2-F4.4Focus Mode Auto/Semi-auto/ManualShutter Speed 1s to 1/100,000sWDR 120 dBOptical Defog No, support algorithmic defogImage EffectPicture in Picture Display partial image of thermal channel on the full screen of optical channelTarget Coloration Supported in white hot and black hot mode.PTZMovement Range Pan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)Pan Speed Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/sTilt Speed Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/sProportional Zoom YesPresets 300 in total, 273 are configurable.Patrol Scan 8; Up to 32 Presets Per PatrolPattern Scan 4; More Than 10 Minutes Per PatternPower Off Memory YesParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/FrameScan/Panorama ScanPT Status Turn On/Turn OffScheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/FrameScan/Panorama Scan/Doom Reboot/Doom Adjust/Aux OutputIlluminatorIR Distance Up to 100mIR Intensity and Angle Automatically adjustedSmart FunctionVCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and RegionExiting), up to 10 scenes and 8 VCA rules for each sceneTemperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rulesof each scene (10 points, 10 areas, and 1 line)Temperature Range -20 °C to 550 °C (-4 °F to 1022 °F)Temperature Accuracy Max (±2 °C, ±2 %)Fire Detection Dynamic fire detection, up to 10 fire points detectable.Video and AudioMain StreamOptical channel50 Hz:25 fps (2688 × 1520,1920×1080, 1280×960, 1280×720)60 Hz:30 fps (2688 × 1520,1920×1080, 1280×960, 1280×720)Thermal channel25 fps (1280×720, 704 × 576, 640 ×512, 256× 192)Sub-streamOptical channel50 Hz:25 fps (704 × 576, 352 × 288)60 Hz:30 fps (704 × 576, 352 × 288)Thermal channel25 fps (704 × 576, 640 ×512, 256 × 192)Video CompressionMain stream: H.265+/H.265/H.264+/ H.264Sub-stream: H.265/H.264/MJPEGAudio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCMNetworkProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoENetwork StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS,SMB/CIFS), auto network replenishment (ANR)APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S,Profile G, Profile T)Simultaneous Live View Up to 20 channelsUser/Host level Up to 32 users, 3 levels: Administrator, Operator, UserSecurityUser authentication (ID and password), MAC address binding, HTTPSencryption, IEEE 802.1x access control, IP address filteringClient iVMS-4200, Hik-ConnectWeb BrowserLive view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0+, Firefox 52.0 +InterfaceAlarm Input 7-ch inputs (0-3.3 VDC)Alarm Output 2-ch relay outputs, alarm response actions configurableAlarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smartcapture/FTP upload/Email linkageAudio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance:1KΩ±10%Audio Output Linear Level; Impedance: 600 ΩCommunication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interfaceAnalog Video Output 1.0 V [p-p]/75 ΩGeneralWeb Client Language32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech,Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, TraditionalChinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)Power Supply24VAC ± 20%, two-core terminal block36VDC ± 20%, two-core terminal block48VDC ± 20%, two-core terminal blockHi-PoEPower Consumption Max 30 WTemperature/Humidity-40°C to 70°C (-40°F to 158°F), 90% or lessProtection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and VoltageTransient ProtectionDimension 305 mm × 185 mm × 163 mm (12.01 " × 7.28 " × 6.42 ")Weight Approx. 3.9Kg (8.6lb)Detection Range TableVCA Range for Humans 80 mVCA Range for Vehicles 240 m
