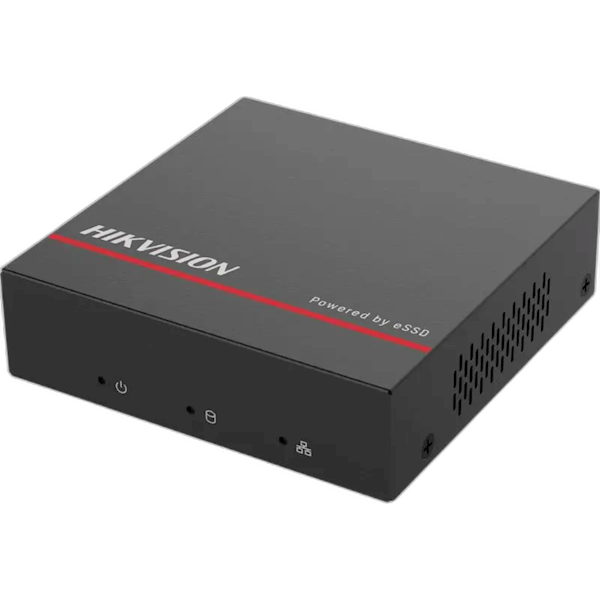

DS-E04NI-Q1 (1TB), Hikvision mini NVR 1TB 4 kanaals

• Aangedreven door eSSD-technologie
• Laag energieverbruik
• H.265+/H.265/H.264+/H.264 videocompressie
• Tot 40 Mbps inkomende bandbreedte en 60 Mbps uitgaande bandbreedte
• Tot 4MP resolutie opnames
• Tot 4-kanaals 1080p-decoderingsmogelijkheden
• 1TB SSD opslag

Technische specificaties

Video And Audio IP Video Input4-ch Incoming Bandwidth 40 Mbps Outgoing Bandwidth 60 Mbps HDMI Output 1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz Decoding Decoding Format H.265,Smart265,H.264,Smart264 Recording Resolution 4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 4-ch Decoding Capability 4-ch@1080p (25 fps) Stream TypeVideo, Video & Audio Audio Compression G.711ulaw/G.711alaw/G.722/G.726 Network Remote Connection128-ch Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface Auxiliary Interface Capacity1TB SSD (pre-installed) USB InterfaceRear panel: 2 × USB 2.0 General Power Supply 12 VDC, 1A Consumption ≤ 10 W (with SSD) Working Temperature -10 °C to 50 °C (14 °F to 122 °F) Working Humidity 10 to 90 % Dimension (W × D × H)95 × 97 × 27 mm (3.7" × 3.8" × 1.1") Weight ≤ 0.24 kg Certification CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Download datasheet
