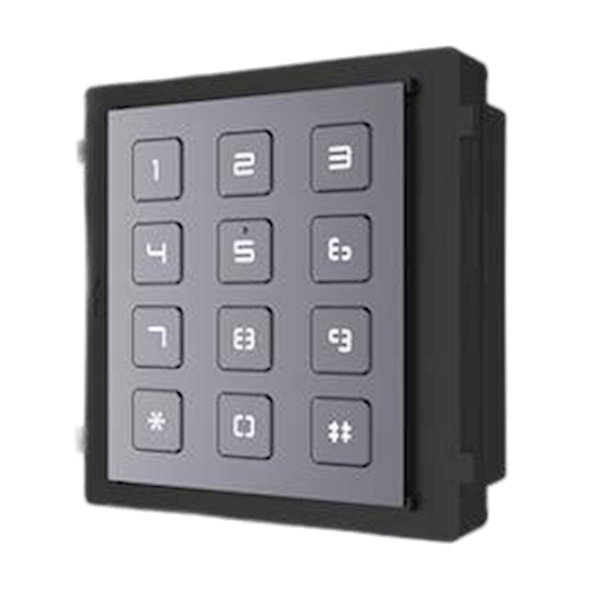

DS-KD-KP, Module Intercom, Keypad
DS-KD-KP, Module Intercom, Keypad is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
DS-KD-KP, Module Intercom, Keypad
DS-KD-KP, Module Intercom, Keypad is backordered and will ship as soon as it is back in stock.
DS-KD-KP, Module Intercom, Keypad
Description
Description
- Belangrijk: bij gebruik van module in een 2-draads installatie, lees het artikel hier eerst alvorens te beginnen met de installatie: klik hier voor meer informatie
- Module met 12 fysieke toetsen
- Ondersteuning ontgrendeling deur via gebruik code
- Ondersteuning van bellen naar binnenpost na ingeving code
- Voorzien van 8 dipswitches
- Voeding d.m.v. 12V DC
- Stroom consumptie <2W.
- Stof- en waterbestendig conform IP65
- Vandaalbestendigheid conform IK7
- Opbouw of inbouw d.m.v. optionele bracket
- Afmetingen: 98.5mm (hoog) x 100mm (breed) x 34.2mm (diep)
Technische specificaties
System Parameters Operation method: Physical Button Processor: Embedded MCU Processor Device Interfaces Debug: 1 Module-connecting: 2(1 Input, 1 Output) General Power output: 12VDC(Powered for the other module) Power input: 12VDC(Powered by the other module) DIP switch: 8 Protection level: IP65, IK7 Installation: Flush Mounting, Surface Mounting Power Consumption: ≤2W Physical button: 12 Working Humidity: 10% to 95% Working Temperature: -40° C to +60° C (-40° F to 140° F) Dimensions(L × W × H): 98.5mm×100mm×33.7mm(3.87"×3.95"×1.33")
