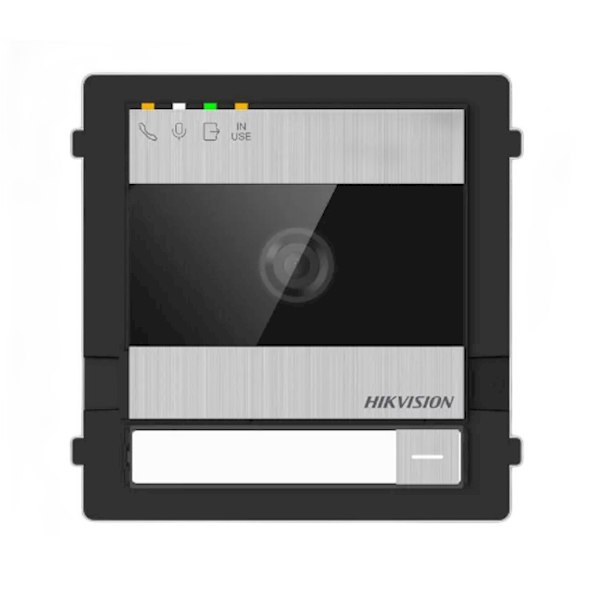

DS-KD7003EY-IME2, 2-Draads Modulaire intercom, cameramodule

• Uitstekend productontwerp: HD-beelden en brede kijkhoek met WDR
• Eenvoudig te gebruiken: ondersteuning voor mobiele webconfiguratie (AP-modus)
• Eenvoudig te gebruiken: DEC-knoppenconfiguratie, Plug & play
• Eenvoudig te gebruiken: meerdere indicatoren: deur openen, bellen, op afroep, in gebruik
• Eenvoudig te gebruiken: enkele en dubbele knoppen kunnen vrij worden aangepast
• Ondersteunt bediening met twee sloten

Technische specificaties

System Parameters Operating SystemEmbedded Linux operation system ROM4 GB RAM256 MB CPUEmbedded Processor Display Parameters Screen SizeNA Operation MethodNA TypeNA ResolutionNA Video Parameters Supplement LightLow illumination, IR supplement lights Video StandardH.264 Lens1 FOVHorizontal: 133°, Vertical: 82° WDR Support Resolution2 MP Audio Parameters Audio Compression StandardG.711 U, G.711 A Audio Input Built-in omnidirectional microphone Audio OutputBuilt-in loudspeaker Audio Compression Bitrate64 Kbps Audio QualityNoise suppression and echo cancellation Volume AdjustmentAdjustable Capacity User Capacity 2000 Linked Indoor Station Capacity Max.99 Sub Door Station Capacity 16 Network Parameters Wired Network10/100 Mbps self-adaptive through 2-wire interface Wi-FiOnly AP mode for configuration BluetoothNA 3G/4GNA Device Interfaces Alarm Input2(supports Exit button or Door contact input) Network InterfaceNA TAMPER1 Exit Button1 Door Contact Input1 RS-4852 (RS485 out for Hikvision's sub module communication, RS485 for reservation) WiegandNA TF CardNA Alarm OutputNA DIP Switch6 decimal DIP switch Lock Control2 (1 relay, max to 30 VDC, 2 A;1 DC pulse,20V 4A impulsive,300 mA holding current,30 ohm max ) Power Interface48V,Powered by distributor DS-KAD7060EY or 12VDC Two-Wire IP Interface1 General Button0-2(Flexible adjustment) InstallationSurface mounting & flush mounting Indicator4 LED lights(Opening door?Calling?Intercom?In use) WeightWith package: 426g ( 0.94lb),Without package: 290g ( 0.64lb) Protective LevelIP65 IK08 Working Temperature -40° C to 60° C (-22° F to 140° F) Working Humidity 10% to 90% Dimensions 99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88\" × 1.37\") Battery Power Supply48V,Powered by distributor DS-KAD7060EY or 12VDC Application EnvironmentOutdoor Power Consumption≤ 6 W LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
