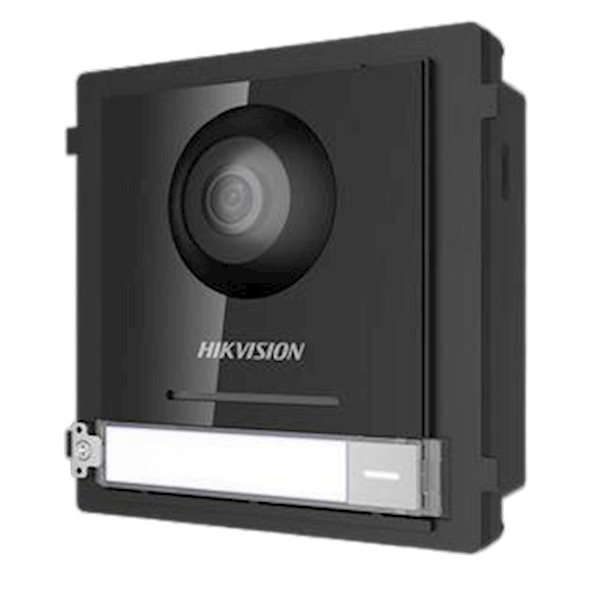

DS-KD8003-IME1 (B), IP, Cameramodule, Met Beldrukker

• 2MP HD video kwaliteit
• Fisheye lens
• Kijkhoek (FOV) horizontaal van 146°
• H.264 video compressie
• WDR voor tegenlichtcompensatie
• Basis toegangscontrole functionaliteiten
• Ingebouwde microfoon en speaker
• Ruisonderdrukking inclusief echo filtering
• LAN 10/100 Mbps ethernet
• Alarm input/output
• Voorzien van 1 beldrukker
• Ondersteuning van maximaal 8 modules
• Voeding via POE of 12V DC
• Stof- en waterbestendig conform IP66
• Kan inbouw als opbouw gemonteerd worden
• Afmetingen: 98mm (hoog) x 99.8mm (breed) x 43.9mm (diep)

Technische specificaties

System Parameters Operation System:   Embedded Linux Operation System Operation method:   Physical Button Processor:   Embedded MCU Processor Camera Parameters Field of view:   180° (Horizontal), 96°(Vertical) Video Parameters WDR:   Supported DNR:   Supported BLC:   Supported Camera:   Low Illumination 2 MP HD IR Camera Video Compression Standard:   H.264 Resolution:   Main Stream: 1920 × 1080 Sub Stream:720 × 480 Anti-flicker frequency:   50 Hz, 60 Hz Audio Parameters Audio Input:   Built-in Omnidirectional Microphone Audio Output:   Built-in Loudspeaker(More than 85dB within 20 cm) Audio Compression Standard:   G.711 U Audio Compression Rate:   64 Kbps Audio Quality:   Noise Suppression and Echo Cancellation Network Parameters Network Protocol:   TCP/IP, RTSP Ethernet:   10/100 Mbps Self-Adaptive Ethernet Light Supplement Light Supplement Mode:   IR Supplement Alarm Parameters Tampering alarm:   1 Device Interfaces Debug:   1 Module-connecting:   1 Relay Output:   2(30V, 1A) I/O Input:   4 General Installation:   Flush Mounting, Surface Mounting Power Supply:   IEEE802.3af standard PoE, 12 VDC/1A Power Consumption:   ≤10 W Physical button:   1 Working Humidity:   10% to 95% Working Temperature:   -40° C to +60° C (-40° F to 140° F) IP Protection Level:   IP65 Dimensions(L × W × H):   98mm × 99.8mm × 43.9mm(3.86"× 3.93" ×1.73")
