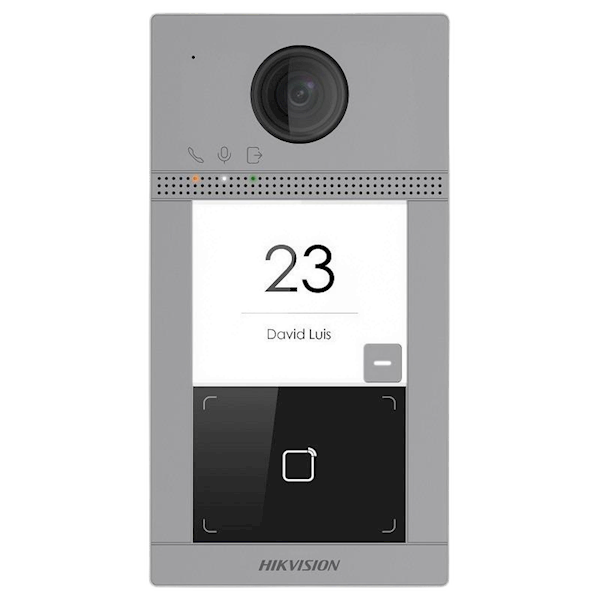

DS-KV8113-WME1 (C), Villa Door Station, 1 Beldrukker, Opbouw

• Standaard PoE als voeding
• 2 Megapixel camera
• Ruisonderdrukking inclusief echo filtering
• Toegangscontrole opties
• Vandaalbestendig IK08
• Configuratie via internet mogelijk
• 2.4 GHz Wi-Fi
• Audio (speaker en microfoon)
• Infrarood verlichting
• 1 beldrukker

Technische specificaties

System Flash 32 M RAM 256M Operation method Single-button Operation system Embedded Linux operation system Video parameters Camera 2MP HD camera Night vision Low illumination IR supplement mode: 3 m BLC Support DNR Support WDR True WDR Field of view Horizontal: 129 °, Vertical: 75 ° Video compression standard H.264 Stream Main stream: 1080p@30fps,720p@25fps Sub stream: D1@25fps Resolution Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576 Motion detection Support Anti-flicker frequency 50 Hz, 60 Hz Audio parameters Audio intercom Two-way audio communication Audio input Built-in omnidirectional microphone Audio output Built-in loudspeaker Audio compression standard G.711 U Audio compression rate 64 Kbps Audio quarity Noise suppression and echo cancellation Network parameters Wired network 10/100 M Ethernet Network protocol TCP/IP, RTSP Access control parameters Reading frequency 13.56 MHz Card type Mifare card Relay 2 Interfaces RS-485 1 Wi-Fi 2.4G Wi-Fi Debugging port 1 TF card Max to 128 G Alarm input 4 Grounding 1 TAMPER switch 1 Physical button 1 General Protection level IP65, IK08 Indicator 3 Power supply IEEE802.3af, standard PoE 12 VDC Power consumption < 10 W Heating module Support Working temperature -40 °C to +53 °C (-40 °F to +127.4 °F) Working humidity 10% to 95% Installation Surface mounting/ Flush mounting

Download datasheet
