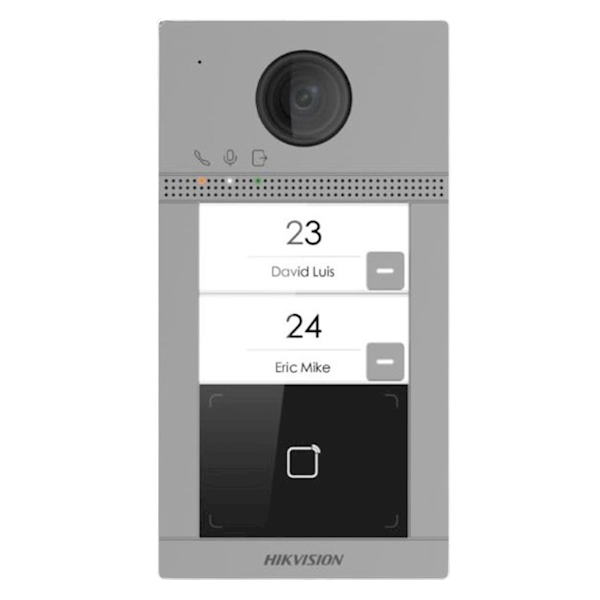

DS-KV8213-WME1(C)/FLUSH, Villa Door Station, 2 Beldrukkers, Inbouw

• Intercom buitenpost met 2 beldrukkers
• Ondersteuning van wifi, gemakkelijke installatie en geen bedrading vereist
• Ondersteuning webconfiguratie
• Aluminiumlegering, mooi industrieel ontwerp, IP65, IK08, 3 indicator geïntegreerd;
• Interne Mifare-kaartlezer, 2-kanaals toegangscontrole binnenstation;
• Ruisonderdrukking en echo-onderdrukking
• 2 MP HD-camera met IR-aanvulling
• Standaard PoE / 12 VDC

Technische specificaties

System Parameters Operating SystemEmbedded Linux operation system ROM32 M RAM256 M CPU Embedded MCU Processor Display Parameters Screen Size/ Operation Method/ Type/ Resolution/ Video Parameters Supplement Light Low illumination IR supplement mode:3 m Video Standard264 Lens1 FOVHorizontal: 129° Vertical: 75° WDR Support   Resolution Main stream : 1920 × 1080 Sub stream : 720 × 480 Audio Parameters Audio Input Built-in omnidirectional microphone   Audio Compression Standard G.711 U   Audio Output Built-in loudspeaker (More than 85 dB within 20 cm)   Audio Compression Bitrate64 Kbps Audio QualityNoise suppression and echo cancellation Volume AdjustmentAdjustable Capacity Fingerprint Capacity/ User Capacity2000 Face Capacity/ Linked Indoor Station Capacity2 Event Capacity/ Network Parameters Communication Protocol TCP/IP, RSTP   Wired Network10/100 Mbps self-adaptive Ethernet Wi-Fi/ Bluetooth/ 3G/4G/ Device Interfaces Alarm Input4 Network Interface1 TAMPER1 Exit Button2 RS-4851 USB/ Wiegand/ TF Card0 Alarm Output/ Lock Control2 Door Contact Input2 Power Interface1 General Button2 InstallationSurface mounting/ Flush mounting Indicator3 Weight385 g Protective LevelIP65, IK08 Power Supply Method IEEE802.3af, standard PoE 12 VDC   Working Temperature -40° C to +55° C(-40° F to 131° F)   Working Humidity 10% to 95%   Dimensions -40° C to 53° C(-40° F to 127.4° F)   Battery/ Application EnvironmentOutdoor environment Power Consumption < 10 W

Download datasheet
