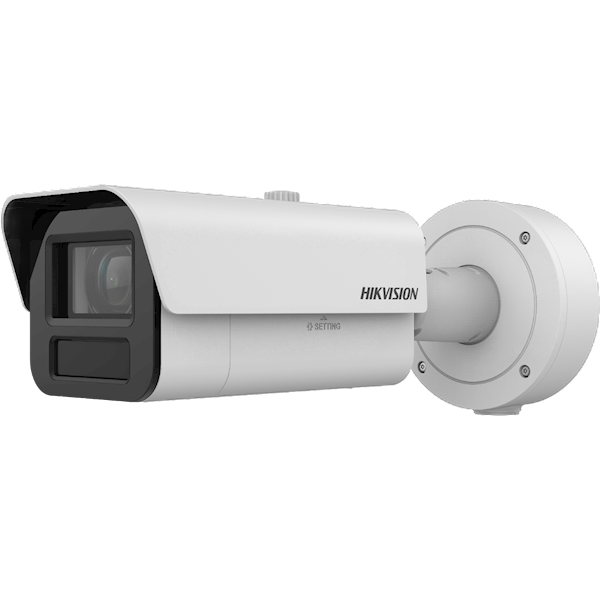

IDS-2CD7A45G0-IZHSY, DeepinView Bullet, 4MP, 4.7-118MM, NEMA coating

• Hoge beeldkwaliteit met een resolutie van 4 MP
• 25 × optische zoom legt details vast in afgelegen gebied
• Helder beeld bij sterk tegenlicht dankzij 140 dB WDR-technologie
• Efficiënte H.265+-compressietechnologie om bandbreedte en opslagruimte te besparen
• Ingebouwde verwarming op het voorste kijkvenster voor een helder beeld bij sneeuwweer
• Ingebouwde gyroscoop voor stabiele beelduitvoer
• Water- en stofbestendig (IP67) en vandaalbestendig (IK10)

Technische specificaties

Camera Image Sensor1/2.5" Progressive Scan CMOS Max. Resolution2688 × 1520 Min. IlluminationColor: 0.009 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter Time1 s to 1/30,000 s Day & NightIR cut filter Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° Lens Focal Length & FOV4.7 to 118 mm, horizontal FOV 58° to 2.8°, vertical FOV 32.3° to 1.6°, diagonal FOV 63° to 3° FocusAuto, semi-auto, manual Iris TypeP-iris Aperture4.7 to 118 mm: F1.6 to F3.8 DORI DORI Wide: D: 106 m, O: 42.1 m, R: 21.2 m, I: 10.6 m Tele: D: 2200 m, O: 873 m, R: 440 m, I: 220 m Illuminator Supplement Light TypeIR Supplement Light RangeUp to 200 m Smart Supplement LightYes IR Wavelength850 nm Video Main Stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate32 Kbps to 8 Mbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Bit Rate ControlCBR/VBR Scalable Video Coding (SVC)H.264 and H.265 encoding Region Of Interest (ROI)4 fixed regions for each stream Target CroppingYes E-PTZSupports Patrol and Auto-tracking settings Audio Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)/8 to 320 Kbps (MP3) Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3 Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz Audio TypeMono sound Environment Noise FilteringYes Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS Simultaneous Live ViewUp to 20 channels APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP User/Host Up to 32 users 3 user levels: administrator, operator, and user SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. ClientiVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+ Local service: Chrome 57.0+, Firefox 52.0+ Image Image Parameters SwitchYes Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser Day/Night SwitchDay, Night, Auto, Schedule Wide Dynamic Range (WDR)140 dB Image EnhancementBLC, HLC, Defog, 3D DNR SNR≥ 52 dB Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable Image StabilizationEIS (Built-in gyroscope to improve EIS performance) Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format Interface Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB Audio 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A) RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Reset KeyYes Power OutputWith -Y: 12 VDC, max. 100 mA Event Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration etection Smart Event Line crossing detection, intrusion detection, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)) Scene change detection, audio exception detection, defocus detection LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture Deep Learning Function Multi-Target-Type Detection Detects up to 60 taregets simultaneously Supports simultaneous detection and capture of human body, face and vehicle Gets 7 face features, 13 human body features and 2 vehicle features Face Capture 1. Detects up to 60 faces simultaneously 2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30° 3. Uploads face with background and closed-up face pictures Face Comparison Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total. Supports face library encryption General Power -IZHSY: 12 VDC ± 20%, 1.73 A, max. 20.7 W, three-core terminal block 24 VAC ± 20%, 1.31 A, max. 19.9 W, three-core terminal block PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.46 A to 0.35 A, max. 19.5 W -IZHS: 12 VDC ± 20%, 1.62 A, max. 19.4 W, two-core terminal block 24 VAC ± 20%, 1.21 A, max. 18.7 W, two-core terminal block PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18.2 W -IZSY: 12 VDC ± 20%, 1.13 A, max. 13.48 W, three-core terminal block 24 VAC ± 20%, 0.89 A, max. 12.14 W, three-core terminal block PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.22 A to 0.29 A, max. 12.29 W -IZS: 12 VDC ± 20%, 1.02 A, max. 12.22 W, two-core terminal block 24 VAC ± 20%, 0.8 A, max. 11.49 W, two-core terminal block PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.20 A to 0.26 A, max. 10.50 W Dimension With -Y: Ø140 mm × 378.4 mm (Ø5.5" × 14.9\") Without -Y: Ø144.1 mm × 375.2 mm (Ø5.7 × 14.8\")" Package Dimension425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1") With -Y: Approx. 2160 g (4.8 lb.) Without -Y: Approx. 2130 g (4.7 lb.)With Package Weight With -Y: Approx. 3310 g (7.3 lb.) Without -Y: Approx. 3200 g (7.1 lb.) Storage Conditions Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional hinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function5 streams, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter Heater Yes De-Icing Yes Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013) Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018) OtherPVC FREE
